What Roof Flashing Does (and Why It Fails)
Roof flashing is the thin metal (or sometimes synthetic) material installed at every joint, seam, and penetration where shingles alone cannot keep water out. When flashing fails, the leak almost never shows up where the failure is. Water tracks down framing and stains a ceiling feet away from the actual problem. Most “mystery leaks” we get called out to in San Antonio and Austin trace back to a flashing detail, not a missing shingle. For a deeper background, see my primer on what roof flashing is and why it’s necessary.
The Main Types of Roof Flashing on Your Home
Most residential roofs use seven to ten different flashing types, each shaped and installed for a specific job. Knowing what each does helps you spot a missing or damaged piece in photos from a roof inspection.
Step Flashing
Step flashing is the most common flashing type on the roof. It’s a series of small rectangular metal pieces, each bent in the middle and woven into the shingle courses where the roof meets a vertical wall. The International Association of Certified Home Inspectors (InterNACHI) puts the typical size range at 2 to 10 inches per piece; Roofing Elements Magazine notes pieces should overlap by at least 2 inches with a 4-inch vertical leg. Per InterNACHI, continuous one-piece flashing on shakes, shingles, or slate is treated as defective installation.
Counter Flashing (and Cap Flashing)
Counter flashing covers the upturned vertical leg of the step or base flashing beneath it, sealing the top edge against water that would otherwise run behind. It’s the second piece of a two-piece system, which is what makes counter-flashed walls re-roofable without disturbing the masonry. On masonry walls and chimneys, the upper edge is most effective when embedded into a mortar joint and sealed. “Cap flashing” is the same concept on parapet tops on low-slope roofs.
Headwall and Apron Flashing
Headwall flashing closes the joint where the top edge of a roof meets a vertical wall (a headwall, in the trade). Apron flashing does the same job at lower transitions. Per InterNACHI, headwall flashing typically comes in 4-inch by 5-inch pieces with a 120-degree bend, and there should be at least 1.5 inches of clearance between the bottom of the wall covering and the top of the roof covering. We covered the apron specifically in what is apron flashing if you want the deep dive.
Drip Edge Flashing
Drip edge runs along eaves and rakes, directing water into the gutter instead of letting it wick back under the shingles and rot the fascia. Fascia rot is the typical failure mode when drip edge is missing. It’s also one of the most-commonly bid-shaved items in lowball estimates. Most building codes require drip edge on every eave and rake, and the same G-90 galvanizing minimum we use elsewhere applies here.
Valley Flashing
Valley flashing protects the channel where two roof planes meet and water concentrates. There are three common configurations: open valleys (the metal is visible), closed-cut valleys (shingles cover the metal), and W-valleys (a center ridge in the metal prevents cross-flow under the shingles on steep slopes or high-runoff designs). W-valleys are especially common on steep Texas Hill Country profiles. I have a full installation walkthrough at W-valley installation.
Vent Pipe Flashing (Pipe Boots)
The boot that seals around plumbing vent pipes is usually the first flashing on the roof to fail. Most are EPDM rubber; the EPDM cracks from UV exposure long before the surrounding shingles do. Roofing Elements Magazine notes EPDM stays serviceable from -50°F to 212°F, and Master Flash-style EPDM boots carry a 25-year warranty. Cut the boot opening 10 to 25 percent smaller than the pipe so the rubber stretches into a tight seal.

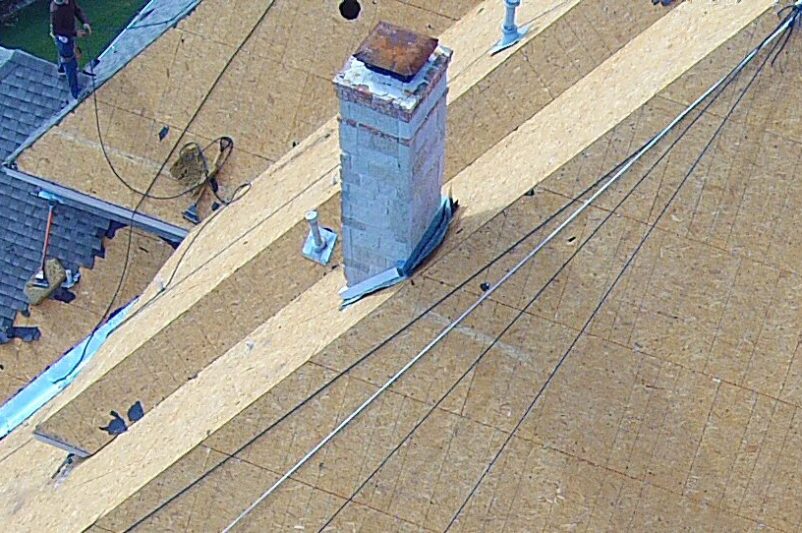

Chimney Flashing
Chimney flashing is the most complex flashing system on a typical residential roof. It combines four kinds on one penetration: an apron at the front (downhill side), step flashing up both sides, counter flashing on top, and on chimneys wider than about 30 inches, a saddle (or cricket) on the back to divert water around the upslope side. When a chimney leaks, the chimney itself almost never fails. The flashing system around it does.
Skylight Flashing
Skylight flashing comes as a model-matched kit from the skylight manufacturer, with separate sill, head, jamb, and step pieces sized to that specific skylight. We don’t improvise it on site. If a flashing kit is missing, damaged, or wrong for the model, the right answer is replacing the kit, not patching with sealant.
Kickout Flashing
Kickout flashing is the small, bent piece installed at the bottom of a step-flashing run where the roof meets a wall above a gutter. It diverts water out of the wall cavity and into the gutter instead of letting it run down behind the siding. A missing kickout is one of the most expensive flashing failures to repair because the damage hides behind the wall for years. The visible tell is a vertical water stain straight down the wall below the roof termination. I have a separate piece on what kickout flashing is and why it matters.
Specialty: Cap Metal, Gravel Stops, and Door/Window Flashing
A handful of additional flashing types show up on specific buildings. Cap metal flashing seals parapet wall tops on low-slope commercial roofs (we install a lot of it on the TPO and EPDM systems we run on commercial buildings). Gravel stops double as a drip edge and a debris-containment lip on built-up roofs. Door and window flashing protects wall openings, often paired with self-adhesive flashing tape and a metal drip cap.
Roof Flashing Materials and What Each One Handles
Flashing materials trade off cost, lifespan, and where they can be used. The four common options on Texas roofs:
| Material | Typical use | Strengths | Watch-outs |
|---|---|---|---|
| Galvanized steel | Most asphalt-shingle roofs | Affordable, rigid, durable when properly coated. Roofing Elements Magazine recommends G-90 galvanizing or better to resist rust. | Thinner stock and lower-grade coatings rust out early. |
| Aluminum | Retrofits, lightweight installations | Lightweight, corrosion-resistant, easy to form. | Reacts with alkaline materials like mortar and concrete (per Roofing Elements), so it’s a poor choice against the stucco-and-stone walls common in Hill Country construction. |
| Copper | Premium homes, historical roofs | Outlasts every other common flashing material; develops a protective patina; pairs with standing seam and slate. | Highest material cost; soft enough to dent in heavy hail. |
| EPDM and silicone | Pipe boots, penetration seals | Flex through the heat-cycling Texas roofs see; silicone is naturally UV- and ozone-resistant. | EPDM boots fail to UV before shingles do; silicone sealants cost more upfront. |
The 26-gauge minimum referenced by most building codes is the floor, not the goal. We typically spec heavier on metal-roof and high-wind installations and pair the right flashing material to the wall material every time. More on the metal side at our metal roofing in San Antonio page.
How Long Roof Flashing Lasts and When to Replace It
Flashing should outlast a single roof installation. Lifespan varies by material:
- Copper: decades, often outlasting two or three roof replacements on the same structure
- G-90 galvanized steel: typically the same lifespan as a quality asphalt roof (20-plus years), longer with thicker stock
- Aluminum: middle of the range, shorter on coastal or alkaline-wall installations
- EPDM pipe boots: first to fail on most roofs; plan on replacing them while the surrounding shingles still have life left
Sealant has its own schedule: per Roofing Elements Magazine, polyurethane and hybrid sealants need replacement every 5 to 10 years; silicone stretches to a decade or more. If a roof-replacement estimate doesn’t itemize new flashing, ask why. Reusing rusted flashing on a fresh roof is a common reason new roofs leak in their first storm season.
What This Means for a Texas Roof
Texas roofs put flashing through a specific set of stresses. The hail belt cycles soft metals through the dent-bend-replace loop. South Texas heat fatigues sealant joints faster than mild climates do. Hill Country construction (stone-and-stucco walls in Stone Oak, Alamo Heights, and Fair Oaks) pushes us toward galvanized steel or copper instead of aluminum at any wall-to-roof junction, because the lime in the masonry will eat aluminum over time. The Metal Construction Association publishes a wind-load resistance test standard for metal-roof flashings (ANSI/MCA FTS-1-2019) that we look to on higher-wind metal-roof projects.
Get a Free Photo Report of Your Flashing
Flashing problems hide in plain sight. The fastest way to know whether your roof’s flashing is doing its job is to let our team document it. Get a free and comprehensive photo report of your flashing from our San Antonio team, no pressure, just a clear picture of what’s working and what isn’t. You get the photos, our notes on every flashing detail we checked, and honest and reliable recommendations.
